Construction

Electrical Data

Capacitance range: 1000 pF to 1.0 µF (E12-values on request)
Rated voltages: 63VDC, 100VDC, 250VDC, 400VDC, 630VDC, 800VDC, 1000VDC
Capacitance tolerances: ±20%, ±10%, ±5%
Operating temperature range: -55°C to +100°C
Test specifications: In accordance with IEC 60384-16
Climatic test category: 55/100/56 in accordance with IEC
Insulation resistance at +20°C: > 1 x 10⁵ MΩ
Measuring voltage:
U_r = 63V: U_test = 50 V/1 min.
U_r > 100V: U_test = 100 V/1 min.
Test voltage: 1.6 U_r, 2 sec
Dielectric absorption: 0.05%
Dissipation factors at +20°C: tanδ

at f	C < 0.1 µF	0.1 µF < C < 1.0 µF
1kHz 10kHz 100kHz	< 5 x 10-4 < 8 x 10-4 < 25 x 10-4	< 5 x 10-4 < 8 x 10-4 -

Maximum pulse rise time:

Capacitance pF/µF	max. pulse rise time V/µsec
	63VDC	100VDC	250VDC	400VDC	630VDC	800VDC	1000VDC
1000 ...2200 3300...6800 0.01 ...0.022 0.033...0.068 0.1...0.22 0.33...0.68 1.0	- - 100 100 100 100 70	- - 100 100 100 100 70	- - 250 250 250 250 -	300 300 300 300 250 - -	400 400 400 400 - - -	450 450 450 450 - - -	500 500 500 - - - -

Voltage derating: A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.
Reliability: Operational life > 300000 hours. Failure rate < 2 fit (0.5 x U_r and 40°C)

Mechanical Tests

Pull test on pins: 10 N in direction of pins according to IEC 60068-2-21.
Vibration: 6 hours at 10...2000Hz and 0.75mm displacement amplitude or 10g in accordance with IEC 60068-2-6
Low air density: 1kPa = 10 mbar in accordance with IEC 60068-2-13
Bump test: 4000 bumps at 390 m/sec² in accordance with IEC 60068-2-29.

Packing

Available taped and reeled.

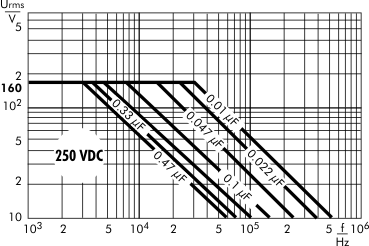

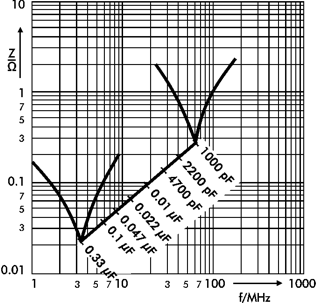

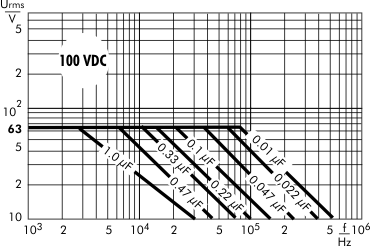

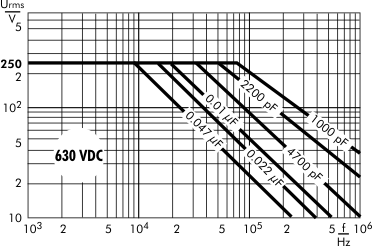

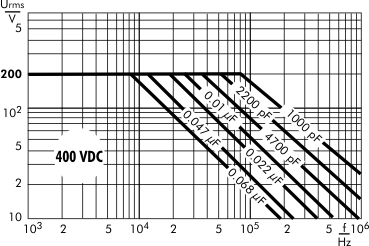

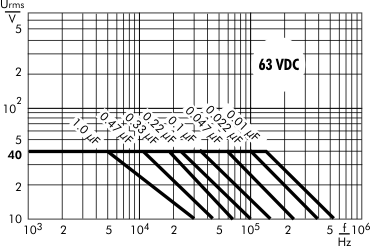

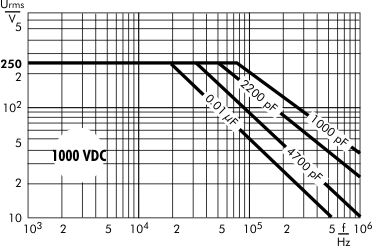

General Data
